// Declare a specific namespace and module name



module Spiro.Commands



// Import managed assemblies



open Autodesk.AutoCAD.ApplicationServices

open Autodesk.AutoCAD.Runtime

open Autodesk.AutoCAD.DatabaseServices

open Autodesk.AutoCAD.EditorInput

open Autodesk.AutoCAD.Geometry

open Autodesk.AutoCAD.GraphicsInterface

open System

open DemandLoading



// Our global variables



let mutable _jigSegs = 1

let mutable _perfectSegs = 10

let mutable _innerOverOuter = 0.125

let mutable _aOverInner = 0.3333



// Return a sampling of points along a spiro's path



let pointsOnSpiro cenX cenY inRad outRad a tStart tEnd num =

  [|

    for i in tStart .. tEnd * num do



      let t = (float i) / (float num)

      let diff = inRad - outRad

      let ratio = inRad / outRad

      let x =

        diff * Math.Cos(ratio * t) +

          a * Math.Cos((1.0 - ratio) * t)

      let y =

        diff * Math.Sin(ratio * t) -

          a * Math.Sin((1.0 - ratio) * t)



      yield new Point2d(cenX + x, cenY + y)

  |]



// Different modes of acquisition for our jig



type AcquireMode =

  | Inner

  | Outer

  | A



type SpiroJig() as this = class

  inherit DrawJig()



&
#160; // Our member variables



  let mutable (_pl : Polyline) = null

  let mutable _cen = Point3d.Origin

  let mutable _norm = new Vector3d(0.0,0.0,1.0)

  let mutable _inner = 0.0

  let mutable _outer = 0.0

  let mutable _a = 0.0

  let mutable _mode = Outer



  member x.StartJig(ed : Editor, pt, pl) =



    // Set our center and start with the outer radius



    _cen <- pt

    _pl <- pl

    _mode <- Outer

    _norm <-

      ed.CurrentUserCoordinateSystem.CoordinateSystem3d.Zaxis



    let stat = ed.Drag(this)

    if stat.Status = PromptStatus.OK then



      // Next we get the inner radius



      _mode <- Inner

      let stat = ed.Drag(this)

      if stat.Status = PromptStatus.OK then



        // And finally the pen distance



        _mode <- A

        let stat = ed.Drag(this)



        if stat.Status = PromptStatus.OK then

          _innerOverOuter <- _inner / _outer

          _aOverInner <- _a / _inner

        stat

      else

        stat

    else

      stat



  // Our Sampler function to acquire the various distances



  override x.Sampler prompts =



    // We're just acquiring distances



    let jo = new JigPromptDistanceOptions()

    jo.UseBasePoint <- true

    jo.Cursor <- CursorType.RubberBand



    // Local function to acquire a distance and
return

    // the appropriate status



    let getDist (prompts : JigPrompts)

      (opts : JigPromptDistanceOptions) oldVal =



      let res = prompts.AcquireDistance(opts)

      if res.Status <> PromptStatus.OK then

        (SamplerStatus.Cancel, 0.0)

      else

        if oldVal = res.Value then

          (SamplerStatus.NoChange, 0.0)

        else

          (SamplerStatus.OK, res.Value)



    // Then we have slightly different behavior depending

    // on the info we're acquiring



    match _mode with



    // The outer radius...



    | Outer ->

      jo.BasePoint <- _cen

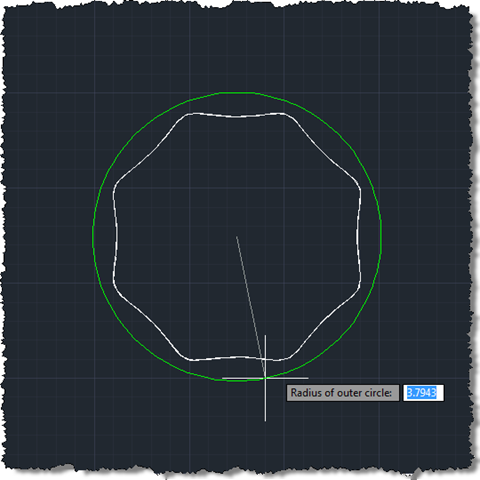

      jo.Message <- "\nRadius of outer circle: "

      let (stat, res) = getDist prompts jo _outer

      if stat = SamplerStatus.OK then

        _outer <- res

      stat



    // The inner radius...



    | Inner ->

      jo.BasePoint <-

        _cen + new Vector3d(_outer, 0.0, 0.0)

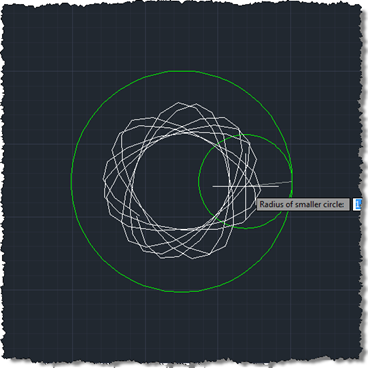

      jo.Message <- "\nRadius of smaller circle: "

      let (stat, res) = getDist prompts jo _inner

      if stat = SamplerStatus.OK then

        _inner <- res

      stat



    // The pen distance...



    | A ->

      jo.BasePoint <-

        _cen + new Vector3d(_outer - _inner, 0.0, 0.0)

      jo.Message <-

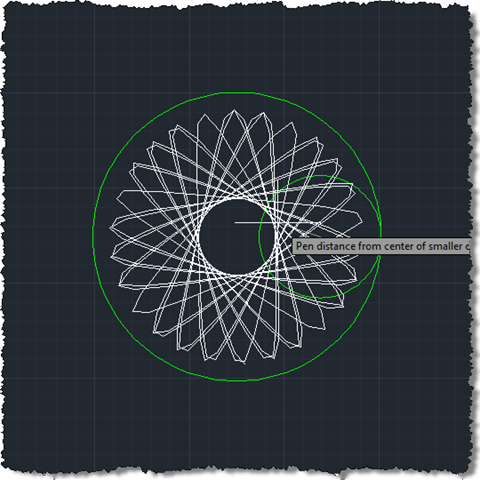

        "\nPen distance from center of smaller circle: "

      let (stat, res) = getDist prompts jo _a

      if stat = SamplerStatus.OK then

        _a <- res

      stat



  // Our WorldDraw function to display the Spiro and

  // the related temporary graphics



  override x.WorldDraw(draw : WorldDraw) =



    // Save our current colour, to reset later



    let col = draw.SubEntityTraits.Color



    // Make our construction geometry green



    draw.SubEntityTraits.Color <- (int16 3)



    match _mode with



    | Outer ->  // Draw the outer circle



      draw.Geometry.Circle(_cen, _outer, _norm)

        |> ignore



    | Inner ->  // Draw the outer and inner circles



      draw.Geometry.Circle(_cen, _outer, _norm)

        |> ignore

      draw.Geometry.Circle

        (_cen + new Vector3d(_outer - _inner, 0.0, 0.0),

        _inner, _norm)

          |> ignore



    | A ->  // Draw the outer and inner circles



      draw.Geometry.Circle(_cen, _outer, _norm)

        |> ignore

      draw.Geometry.Circle

        (_cen + new Vector3d(_outer - _inner, 0.0, 0.0),

        _inner, _norm)

          |> ignore



    // Check the RegenAbort flag...

    // If it's set then we drop out of the function



    if not draw.RegenAbort then



      draw.SubEntityTraits.Color <- col



      // If getting the outer radius fix the other

      // parameters relative to it (as the inner radius

      // comes later we only need to fix the pen distance

      // against it)



      if _mode = Outer then

        _inner <- _outer * _innerOverOuter

        _a <- _inner * _aOverInner

      else if _mode = Inner then

        _a <- _inner *_aOverInner



      // Generate the polyline with low accuracy

      // (fewer segments == quicker)



      if not draw.RegenAbort then



        // Generate our polyline



        x.Generate(_jigSegs)



        if not draw.RegenAbort then



          // And then draw it



          draw.Geometry.Polyline(_pl, 0, _pl.NumberOfVertices-1)

            |> ignore



    true



  // Generate a more accurate polyline



  member x.Perfect() =



    x.Generate(_perfectSegs)



  member x.Generate(num) =



    // Generate points based on the accuracy



    let pts =

      pointsOnSpiro

        _cen.X _cen.Y _inner _outer _a 0 300 num



    // Remove all existing vertices but the first

    // (we need at least one, it seems)



    while _pl.NumberOfVertices > 1 do

      _pl.RemoveVertexAt(0)



    // Add the new vertices to our polyline



    for i in 0 .. pts.Length-1 do

      _pl.AddVertexAt(i, pts.[i], 0.0, 0.0, 0.0)



    // Remove the first (original) vertex



    if _pl.NumberOfVertices > 1 then

      _pl.RemoveVertexAt(0)



end



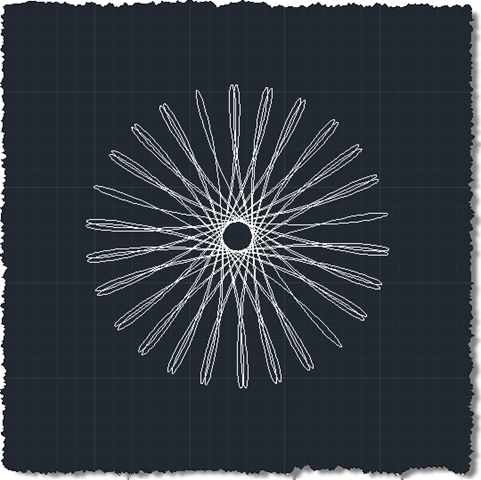

// Our jig-based command



[<CommandMethod("ADNPLUGINS", "SPI", CommandFlags.Modal)>]

let spirojig() =



  // Let's get the usual helpful AutoCAD objects



  let doc =

    Application.DocumentManager.MdiActiveDocument

  let ed = doc.Editor

  let db = doc.Database



  // Prompt the user for the center of the spiro



  let cenRes = ed.GetPoint("\nSelect center point: ")



  if cenRes.Status = PromptStatus.OK then



    let cen = cenRes.Value



    // Create the polyline and run th
e jig



    let pl = new Polyline()

    let jig = new SpiroJig()

    let res = jig.StartJig(ed, cen, pl)



    if res.Status = PromptStatus.OK then



      // Perfect the polyline created, smoothing it up



      jig.Perfect()



      use tr =

        db.TransactionManager.StartTransaction()



      // Get appropriately-typed BlockTable and BTRs



      let bt =

        tr.GetObject

          (db.BlockTableId,OpenMode.ForRead)

          :?> BlockTable



      let ms =

        tr.GetObject

          (bt.[BlockTableRecord.ModelSpace],

          OpenMode.ForWrite)

          :?> BlockTableRecord



      // Add our polyline to the modelspace



      let id = ms.AppendEntity(pl)

      tr.AddNewlyCreatedDBObject(pl, true)



      tr.Commit()



[<CommandMethod("ADNPLUGINS", "SPISEGS", CommandFlags.Modal)>]

let spiroSegments() =



  // Let's get the usual helpful AutoCAD objects



  let doc =

    Application.DocumentManager.MdiActiveDocument

  let ed = doc.Editor

  let db = doc.Database



  // Prompt the user for the center of the spiro



  let pio =

    new PromptIntegerOptions(

      "\nEnter segment resolution for jigged spiro: ")

  pio.LowerLimit <- 1

  pio.UpperLimit <- 20

  pio.DefaultValue <- _jigSegs

  pio.UseDefaultValue <- true



  let segRes = ed.GetInteger(pio)



  if segRes.Status = PromptStatus.OK then



    _jigSegs <- segRes.Value



    pio.Message <-

      "\nEnter segment resolution for perfected spiro: "

    pio.DefaultValue <- _perfectSegs



    let segRes = ed.GetInteger(pio)



    if segRes.Status = PromptStatus.OK then



      _perfectSegs <- segRes.Value



[<CommandMethod("ADNPLUGINS", "REMOVESP", CommandFlags.Modal)>]

let removeSpiro() =



  try

    RegistryUpdate.UnregisterForDemandLoading()



    let doc =

      Application.DocumentManager.MdiActiveDocument

    doc.Editor.WriteMessage

      ("\nThe Spiro plugin will not be loaded" +

      " automatically in future editing sessions.")

  with _ -> ()
